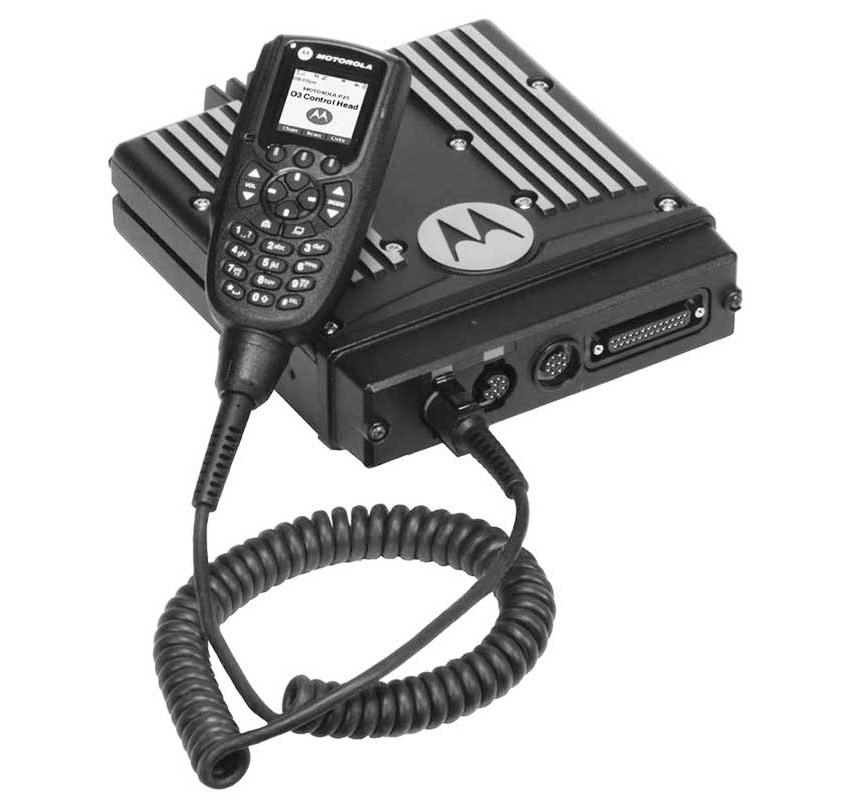

Motorola’s XTL 5000 Project 25-compliant mobile radio is tough and well-suited for users in Police, Fire, EMS, State/Local/Federal Government agencies. Taking into consideration your work environment and various job responsibilities, this robust mobile radio will support the type of consistent, high quality communication you need.

The XTL 5000 digital mobile radio supports APCO Project 25 and is available in 136-174 MHz, 380-470MHz, 450-520 MHz 764-870 MHz frequency bands and supports the accessories common to the XTL platform.

The XTL 5000 digital mobile radio is specifically designed to meet the needs of your organization. When you want high performance, quality, and reliability in your daily communications, the XTL 5000 digital mobile radio is the radio of choice. (Type II Trunking Only.)

• 1000 Channels (Standard)
• Dual mode operation (ASTRO Digital and Analog)
• 9600 and 3600 Trunking Baud capable
• Project 25 capability on Conventional and Trunking systems with interoperable voice signaling features
• Integrated voice and data capable
• Programming Over Project 25 (POP25)
• Over the Air Rekeying (OTAR)
• 12.5 kHz bandwidth receiver (digital)
• 14-digit character display
• Meets Military Specs 810 (C,D, E and F)
• Utilizes Windows®-based customer programming
• USB/RS232 connectivity
• Reuse of most ASTRO/ MCS accessories

Frequency bands:

• 136-174 MHz
• 380-470 MHz
• 450-520 MHz
• 764-870 MHz

Power Levels:

• 10-50 Watt (136-174 MHz)
• 10-40 Watt (380-470 MHz)
• 10-45 Watt (450-520 MHz)
• 10-35 Watt (764-870 MHz)
• 25-100 Watt (136-174 MHz)
• 25-100 Watt (380-470 MHz)
